DIMENSIONS

Size Charts can be created using Dimensions, Increment and Product Group. Users can associate a Size Chart within a Style. User can define Size Chart using Dimensions for their styles.

Create a new Dimension

1. Navigate to Home > Specification > Size Chart > Dimensions tab.

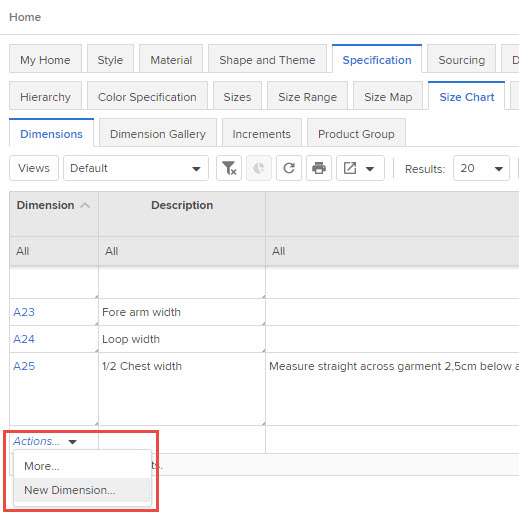

2. Mouse-over Actions and select New Dimension.

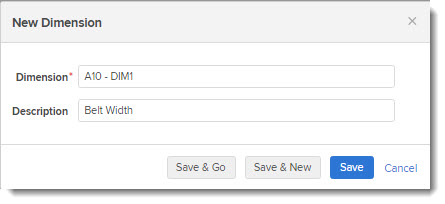

3. In the New Dimension dialog box, enter the Dimension details and click on Save.

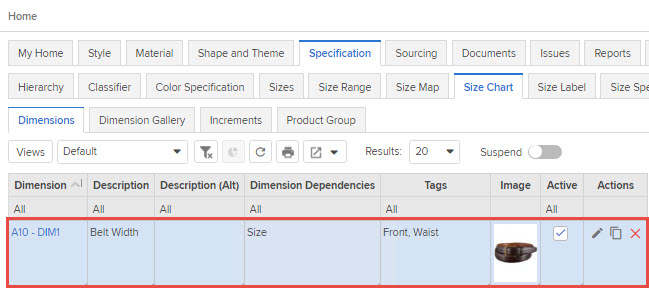

4. The new Dimension is created and displayed in the Dimension table. User can also update information in the Dimension  table for the editable fields indicated by a grey triangle displayed in the right-hand bottom corner of the cell.



5. The following attributes are displayed in the default view:

• Dimension: The name of the Dimension. This is an editable field. To edit the Dimension details, click on the Dimension name and select the Edit link. The details are displayed in the edit dialog box. Edit the required details and click on Save.

• Description: A brief description of the Dimension. This is an editable field and the description details can be edited if necessary.

• Description (Alt): An alternate description for the Dimension

• Dimension Dependencies: This attribute is now available in Centric 8 6.0 and higher. When creating a Size Chart Dimension Points of Measure (POM) that depend on a dimension can be marked accordingly. This attribute is a multi-select field and allows user to select one or more dimensions on which the POM depends.

• Tags: Click anywhere in the cell and enter details of the tag name. Click on the + icon to add the tag name to the list. To select a tg name select the check-box adjacent to the tag name in the drop-down list. The selected tag name (s) will be displayed in the table.

• Image: Click anywhere in the cell and select Browse Images. In the Browse Images dialog box, navigate to the required folder and select the Image to be displayed for a particular Dimension.

• Active: This check-box is selected by default. To make a particular Dimension inactive and unavailable in the Centric 8 application, de-select the check-box corresponding to a particular Dimension.

• Actions: Icons relating to copy, edit, delete etc. are displayed in this column.

Users can also create Increment and Product Group from the respective sub-tabs.
