LIBRARIES

On this tab, users can group library details for organizing and filtering at the lower hierarchy levels. Users can create one or more library elements which is added to the parent library. Users can also create a library by selecting existing elements from within the parent library. Users can create one or more libraries for the following types:

• Care Label

• Color Specification

• Material

• Size Label

Define a new Library

1. In the Library column, mouse-over Actions and select a library type.



2. A new library is created in the table. Edit details of the Library name as required.



3. The select library type is automatically displayed in the Type column and is not editable.



The library type once selected cannot be changed. To change the library type details,

delete the row and create a new library by choosing a new library type.

4.  To add one or more elements to a library, click the library.

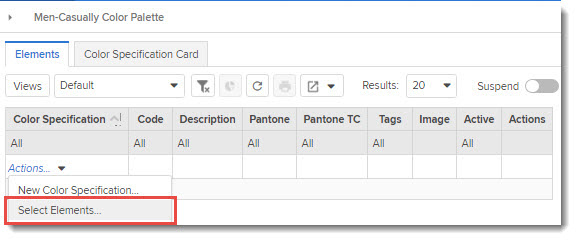

5. On the Elements tab, click on the Select Elements link.

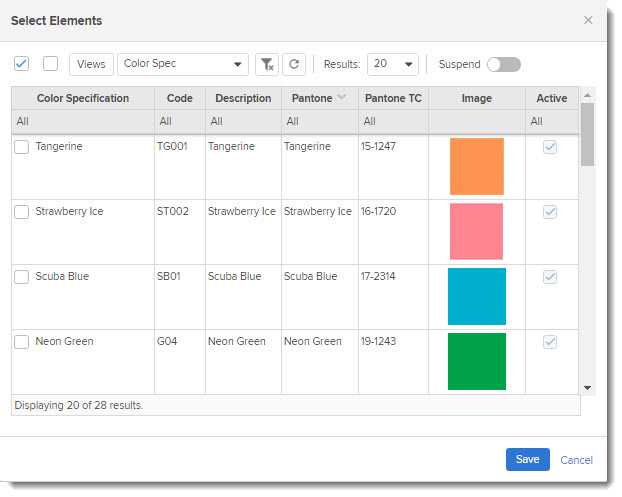

6. The Select Elements dialog box is displayed which lists all the existing color specifications.





The elements listed in the Select Elements dialog box are created on the Home > Specification

> Color Specification tab.

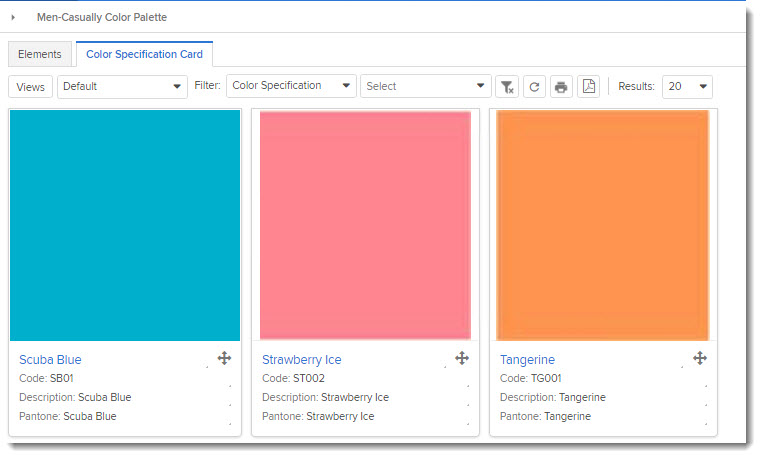

7. To edit details of the color specification, click on the Color Specification Card tab.



8. Click on a color specification name to edit the details.
