VIEW COLOR LIBRARY WINDOW

To open Color Libraries window in Illustrator CS

1. The Color Library tab, which was available in the earlier versions of Adobe PLM Connect, is now replaced with the Color Libraries feature.

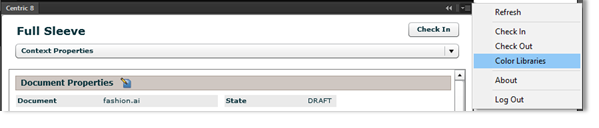

2. To open the Color Libraries window, in the Illustrator CS Extension panel, click on the icon in the top right hand corner and select Color Libraries.

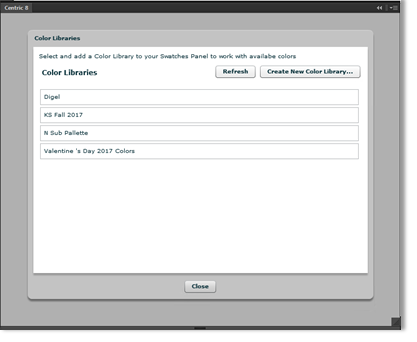

3. All the available color libraries are displayed in the Color Libraries window.



To open Color Libraries window in HTML5

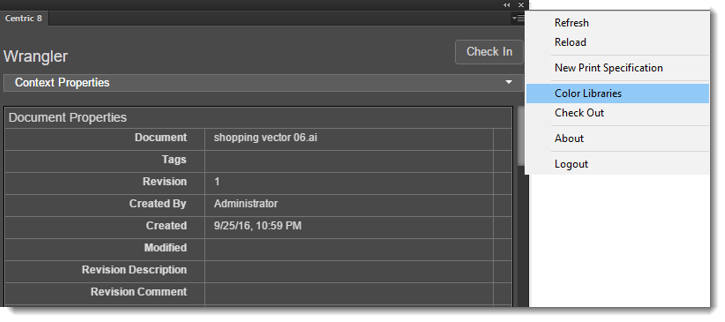

1. In the Illustrator CC Extension panel, click on the icon in the top right hand corner and select Color Libraries

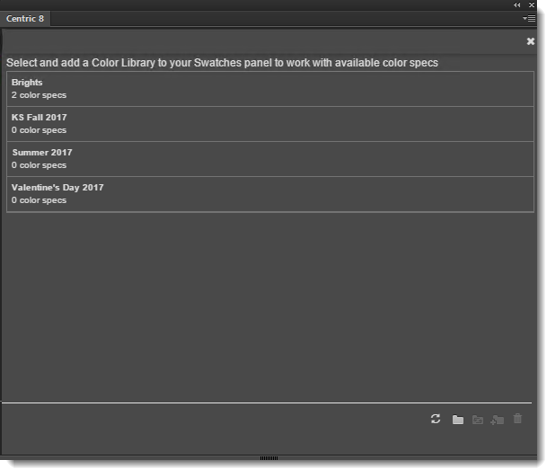

2. All the available color libraries are displayed in the Select and add a Color Library to your Swatches panel to work with available color specs window

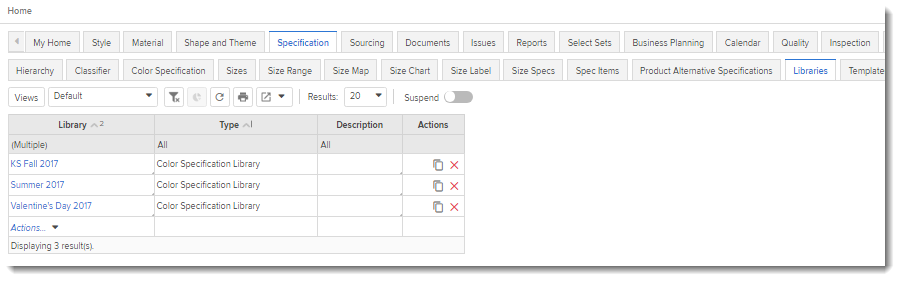

One or more Color Libraries displayed in the Illustrator Extension window are created in Centric 8 on the Home > Specification > Libraries tab.
